Vertical aluminium profile powder coating line
  • Powder coating line for aluminium profile in vertical hanging

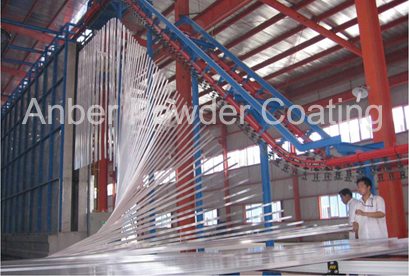

  • Loading area for vertical aluminium profile powder coating line

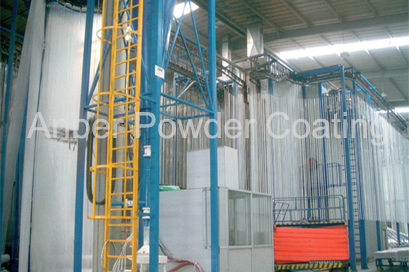

  • Powder spray guns and reciprocator for aluminium profile powder coating line

  • Vertical powder coating line for aluminium profile

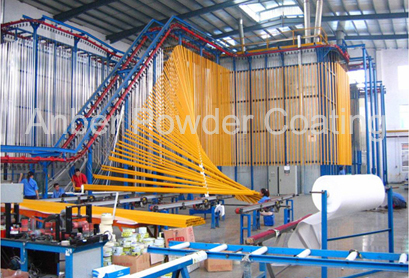

  • Unloading area for vertical profile powder painting line

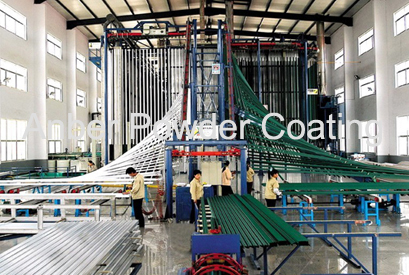

  • Complete powder coating plant for aluminium profile

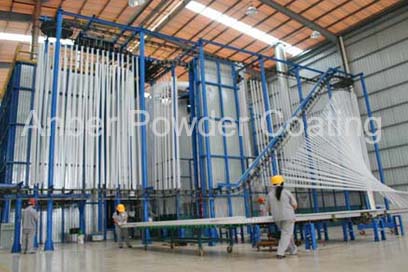

  • Automatic aluminium profile powder coating line

Design basis of vertical aluminium profile powder coating line

1. Name of workpiece: Aluminium profile (Vertical hanging method)
2. Max hanging size on each hanger: L100mm×W100mm×H6000mm
3. Loading capacity on hanging hook: ≤150kg
4. Hanging height: 850mm
5. Conveying speed: 1m/min
6. Output: 300-400pcs/h
7. Spraying method: 8 auto spray guns with 2 reciprocators
8. Heating source: natural gas or oil
9. Required plant size: L72m×W18m×H9.5mm

Process flow of automatic aluminium profile powder coating line
1. Feed your aluminium profiles on this automatic powder coating line
2. Pickling stage (50-60 Celsuis for 2 mins)
3. Rinsing stage (Room temperature for 1 min)
4. Chromizing stage (25-35 Celsuis for 3 mins)
5. Rinsing stage (Room temperature for 1 min)
6. Drying off oven to remove surface moisture (100-200 Celsuis for 10 mins)
7. Powder application with spray guns
8. Powder curing (180-200 Celsuis for 20-18 mins)
9. Finished product discharging
If above parameters cannot meet with your strict coating need, please contact us for more detail. We can make some adjustments or even improvements to suit your actual production conditions.

Related keywords of aluminium profile powder painting line
Aluminium profile powder coating line,Aluminium profile powder spraying line, Aluminium profile powder painting line, Powder coating line for aluminium profile, Automatic powder coating line for aluminium profile, Aluminium tube powder coating line, Aluminium pipe powder coating line, Aluminium extrusion powder coating line, Aluminium strip powder coating line, Aluminium window & door frame powder coating line.

Powder coated aluminium profile:
Befor powder coating

Aluminium profile with
PVDF powder
Aluminium profile with
matte powder

Aluminium profile with
epoxy powder
Aluminium profile with
glossy powder
Samples of powder
coated window frame
